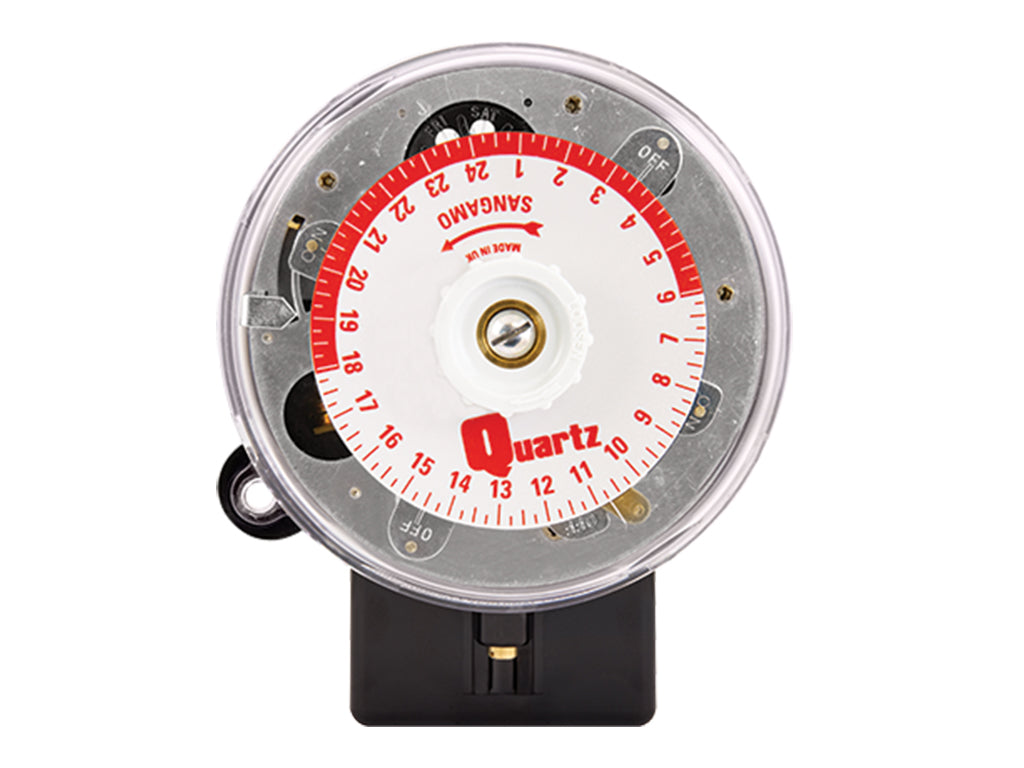

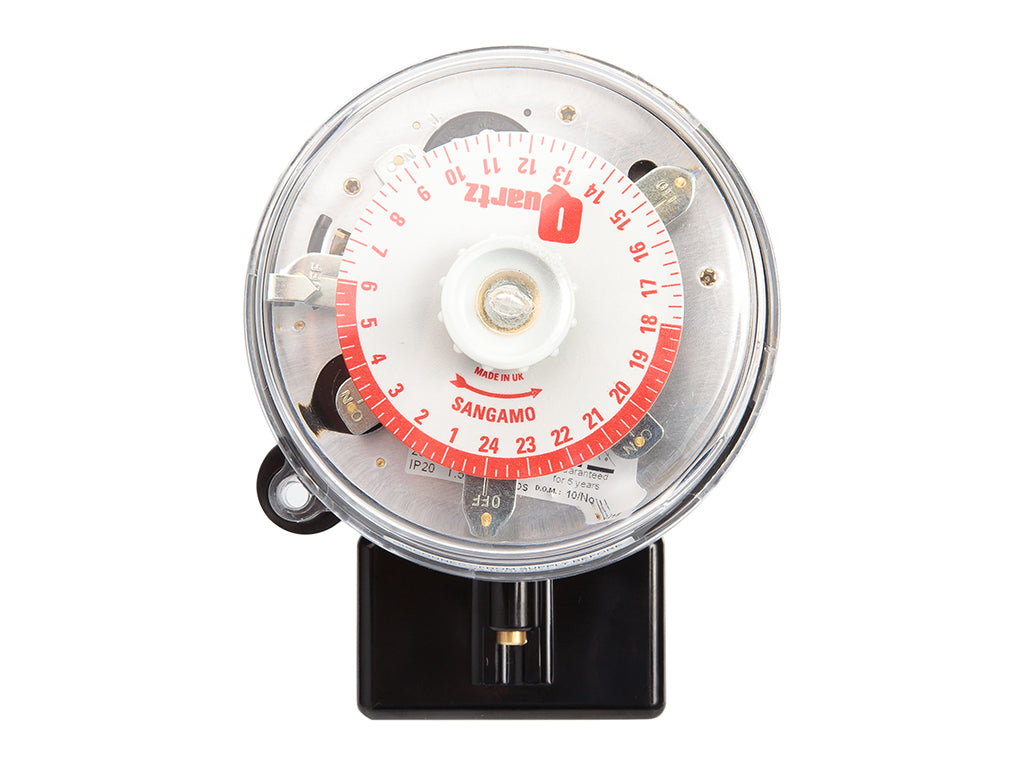

Q555

Product Description

The 24 hour programming time switch cycle performs the same sequence of switching operations on each day and can be quickly and easily set using the small manual levers on the dial. A “day omit” device allows you to select any number of days in the week on which the switching cycle can be disabled. A general purpose timeswitch for heating, ventilation and equipment control applications.

Programming: 24 hour with either 2 or 3 operations
Current Rating: 20A
Connection Pins: 4
Battery Reserve: 100 hours
Day Omit Dial: Yes (Omits the ‘ON’ operation)

Programming 24 hour programme with 2 (Q555.2) or 3 (Q555.3) ON/OFF operations per day
Display 24 hour dial
Mounting Surface mounting
Current Rating SPST: 20amp resistive
Supply 230V, 50/60 Hz a.c.
Base Type 4 Pin
Reserve 100hrs (providing battery has been charged for 300 hrs)
Day Omission Yes (omits the “ON” operation)
Temp Override Facility Advance to “OFF”, when program “ON” and will remain “OFF” unit next
(Manual Button) “ON” operation and vice versa
Cable Size 6.0mm2
Timing Accuracy 5 mins/year
Power Consumption 0.6W at 230V
Ambient Temperature Range Designed to operate over a temperature range of 0°C to 50°C continuous
Live Parts Protection This timer is totally protected by its enclosure
Dirt Protection Normal domestic dust deposits only
Moisture Protection Ordinary: has no special protection against moisture
Shock Protection Class 1 (Product must be earthed)
Dial Calibration 15 min divisions
Setting Accuracy +/- 3 minutes
Conforms to BS EN60730
Dimensions Height (wall mounted) 136mm, width 105.7mm, projection 82mm, (Total height 146.5mm)

1 – Live In (Clock & Load) – External link 1 to 3 if using a single 230Vac supply
2 – Live Out (Load)
3 – Live In (Clock)
4 – Neutrals
Earth Posn – Earth

Sangamo Q555 Wiring Diagram
